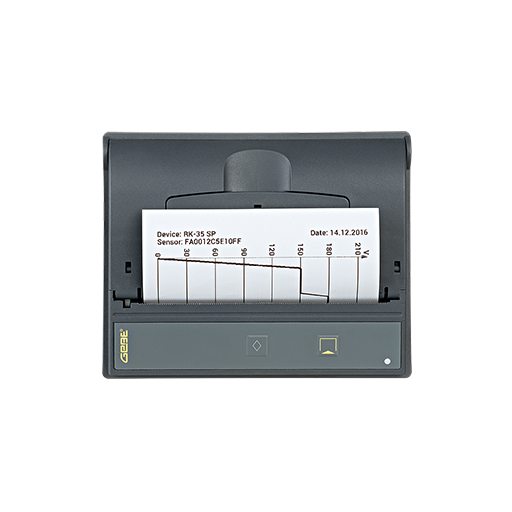

Log printer for 114mm paper width: GeBE-MULDE Maxi

Front panel thermal printer for printing in industry, automation or medical technology

Log printer as space saving front panel thermal printer for stationary and mobile applications of different industries. This thermal printer is amongst others compatible to HP Deskjet.

Special Features
This printer represents a true thermal printing alternative to standard DIN A4 desktop printers. Standard DIN A4 pages are zoomed to 114 mm paper width. Integration depth of only 47mm

Typical applications

Protocol printing in machines, for measurement technical targets or documentation Receipt printing e.g. at POS or in accounting systems at hotel receptions

Your advantages of the thermal printer GeBE-MULDE Maxi
Mobile or stationary thermal printing Cost effective and space saving thermal printer front-mounting Thermal printers in standard DIN format housing available Time saving paper handling Thermal printer compatible to i. e. HP Deskjet Customization available starting with small production series

Techical Data
Printer Mechanism
Paper width:	114 mm
Paper Feed:	Easy Paper Loading
Printer Type:	Thermal direct print
Printing Area:	104 mm
Printing Resolution:	8 dots per mm (203 dpi)
Dots per Line:	832
max. Printing Speed:	70 mm/s
Fonts:

Components
switches:	Feed, Next, Set, Status LED

µ-P-System
µ-P-Type:	C32

Interfaces
Driver available:	Windows® CE 5.0, 6.0, 7.0 und Windows® 7, 8, 8.1, 10, Cups für Linux Ubuntu 16.04 LTS (weitere auf Anfrage)
Interfaces:	USB 2.0 FS, RS232

Mechanical data
Housing:	PA6 with 15 % glas fibre
Color:	RAL 7016 as standard, customizing possible
Dimensions W x B x D:	150 x 119 x 68 mm
Weight with paperroll:	0,500 kg

Electric Data
Voltages:	4,5 to 8,5 VDC
Current consumption peak:	0,7 - 6,0 A, adjustable
Current logic:
with DC/DC converter:	10-36 VDC

Paper
Paper Thickness:	70 - 100 µm or GeBE thin labels
Paper Roll Size:	max. 60 mm
Paper length:	ca. 43 m

Environment
Operating Temperature:	-10 °C to +60 °C (with spec. paper)

Quality
paper run:	50 km
